Brand: CyberPower

SM Series, 3 X 3 PH, Online Modular UPS System 20 – 400 KVA, 0.9 PF, 480VDC

Original price was: ₹263,000.Current price is: ₹245,500.

11 products sold in last 11 hours
Selling fast! Over 16 people have in their cart

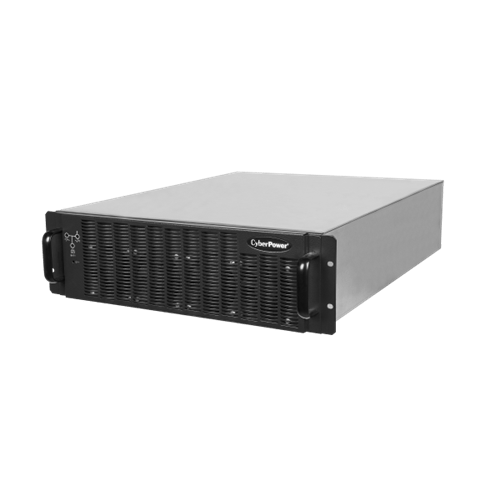

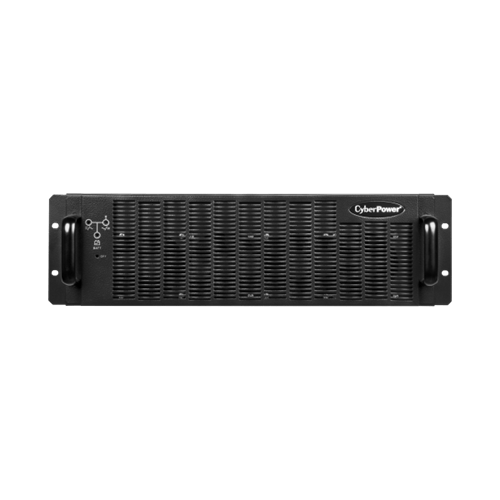

Cyberpower Datacenter UPS SM20KPM

Three-phase Design

Online (Double Conversion) UPS Topology

Pure Sine Wave Output

Flexible Power Scalability

27 people are viewing this right now
  • Check Mark Estimated Delivery : Up to 4-7 business days
  • Check Mark Free Shipping & Returns: On all orders over ₹2000
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SM Series, 3 X 3 PH, Online Modular UPS System 20 – 400 KVA, 0.9 PF, 480VDC, Warranty 1 Year

CyberPower SM20KPM is a power module which can be installed into the UPS to provide vertical scalability and extended power capacity for datacenter UPS. Users can choose the number of power modules to install, and flexibly configure the power capacity based on their business needs. The product can be installed without taking any extra footprint, saving valuable floor space. The plug-n-play function supports quick and immediate installation. Moreover, the product features hot-swappable capability, allowing users to safely replace battery module without interrupting connected loads, and ensuring seamless operation.

Features

  • Three-phase Design
  • Pure Sine Wave Output
  • Hot-swappable Power Modules
  • Online (Double Conversion) UPS Topology
  • Flexible Power Scalability
  • Space-saving Design

What’s in the box

  • SM20KPM
  • Rackmount Ears
  • User’s Manual

* Product contents may vary according to different regions. For detailed information, please refer to user’s manual/quick start guide.

General

Phase

Three Phase

Form Factor

Modular

UPS Topology

Online Double Conversion

Energy Saving Technology

ECO Mode Efficiency > 98%

Normal Mode Efficiency ( % )

95%

Battery Mode Efficiency ( % )

95%

Active PFC Compatibility

Yes

Parallel Expansion (Max. Units)

20

Input

Nominal Input Voltage ( Vac )

Line to Neutral (L-N):220, 230, 240 Vac, Line to Line (L-L):380, 400, 415 Vac

Input Voltage Range ( Vac )

Line to Line (L-L): 228 ~ 478 Vac
Line to Neutral (L-N): 132 ~ 276 Vac

Configurable Voltage Range ( Vac )

Line to Line (L-L): 380 ~ 435 Vac
Line to Neutral (L-N): 220 ~ 250 Vac

Input Frequency ( Hz )

50 ± 3
60 ± 3

Input Frequency Range ( Hz )

40 ~ 70

Rated Input Current ( A )

28

Current Harmonic ( % )

3%

Input Power Factor

0.99

Output

Capacity (VA)

20000

Capacity (Watts)

18000

On Battery Waveform

Pure Sine Wave

Output Voltage Setting

Configurable

Output Frequency Setting

Configurable

Rated Output Voltage ( Vac )

Line to Neutral (L-N):220, 230, 240 Vac, Line to Line (L-L):380, 400, 415 Vac

Output Voltage Tolerance ( % )

1 %

Output Frequency ( Hz ± % )

50 ± 0.1
60 ± 0.1

Power Factor

0.9

ECO Mode Voltage Tolerance

± 10 %

Overload Protection

Internal Current Limiting, Fuse

Overload Protection (Line Mode)

105~110% Load for 60 min, 110~125% Load for 10 min, 125~150% Load for 1 min, >150% Load Immediately

Overload Protection (Battery Mode)

105~110% Load for 60 min, 110~125% Load for 10 min, 125~150% Load for 1 min, >150% Load Immediately

Overload Protection (Bypass Mode)

125~130% Load for 60 min, 130~150% Load for 6 min, >150% Load Immediately

Crest Factor

3 : 1

Harmonic Distortion (Linear Load)

THD＜1%

Harmonic Distortion (Non-linear Load)

THD＜5.5%

Internal Bypass

Automatic Bypass, Manual Bypass

Maintenance Bypass

Yes

Typical Transfer Time ( ms )

0

Battery

Recharge Power ( % )

Default 10% (Selectable from 1~20% x UPS Capacity)

Recharge Power Setting

Configurable

Charger Voltage Tolerance ( % )

≤ 1 %

Smart Battery Management (SBM)

Yes

Surge Protection & Filtering

EMI/RFI Filtration

Yes

Management & Communications

LED Indicators

Yes

Physical

Enclosure Construction

Metal

Color

Black

Ingress Protection

IP20

Rackmount Ears

Yes

Physical Size – Power Module

Dimensions (WxHxD) (mm.)

440 x 134 x 590

Weight (kg.)

22.5

Shipping Dimensions

Dimensions (WxHxD) (mm.)

620 x 235 x 780

Weight (kg.)

28.5

Environmental

Operating Temperature (°F)

32 ~ 104

Operating Temperature (°C)

0 ~ 40

Operating Relative Humidity (Non-condensing) ( % )

0 ~ 95

Operating Elevation ( feet/meters )

≤1000, Load Derated 1% per 100m from 1000m and 2000m

Storage Temperature (°F)

-40 ~ 158

Storage Temperature (°C)

-40 ~ 70

Storage Relative Humidity (Non-condensing) ( % )

0 ~ 95

Audible Noise at 1.0M from Surface of Unit ( dBA )

55

Certifications

Certifications

CE, IEC62040-1, IEC62040-2

Product Contents

Documentation

User’s Manual



Weight 28.5 kg
