Brand: Hitachi

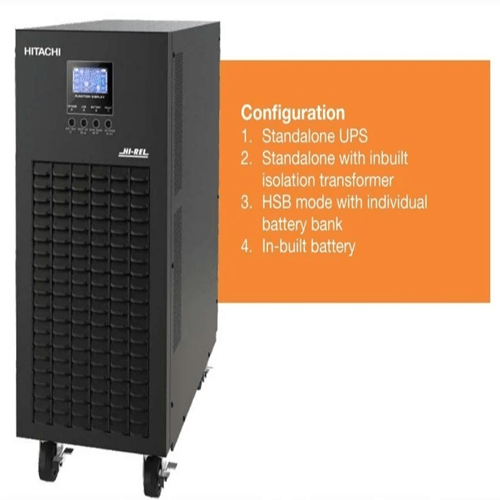

Hitachi 10 KVA 3:1 Phase Online UPS (192/240VDC )

Original price was: ₹159,500.Current price is: ₹108,000.

17 products sold in last 7 hours
Selling fast! Over 8 people have in their cart
Capacity
10 kVA
Model Name/Number
HS31-10
Usage/Application
Industrial
Phase
3:1 Phase
Weight
28 Kg
Warranty
1 Year
Form Factor
Tower Model
Output Voltage
230 Volt
Frequency
60 – 70 Hz
Audible Noise
< 50 Decibal
Efficiency
> 90 %
Digital Display
LCD Display
Crest Factor
3:1
Technology
Double Conversion Online
Dimensions (H x W x D)
576 Mm*592 Mm*250 Mm
Country of Origin
Made in India
Availability
In Stock

Price Includes 18% GST/ Price for UPS only/Batteries & Accessories Buy Separately

25 people are viewing this right now
  • Check Mark Estimated Delivery : Up to 4-7 business days
  • Check Mark Free Shipping & Returns: On all orders over ₹2000
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout

Hitachi HS31 Series IT UPS 3:1

Highlights

HS31 UPS available in three phase input and single phase output, range available from 10 kVA to 20 kVA. External battery cabinets can be added for extended run time. With true double-conversion design, HS31 UPS provides powerful and overall protection to your sensitive devices. It can accept wider input voltage for harsh environment. It is perfect protection for your precious servers and workstations

HS31 UPS is a true on-line power source, which means power is always being conditioned and supplied to the connected device(s), whatever the quality of power coming in, a pure sine wave output results to ensure equipment is protected.

Hitachi-Hirel HS31 Series IT UPS Features

  • True Online Double & Triple Conversion Designs
  • Smart RS-232 Communication Port
  • Optional SNMP Interface Card
  • Galvanic Isolation Option
  • Parallel & Hot Standby Configurations

Specification

Output Specification
Output Capacity (KVA )-10 KVA
Output Capacity (KW )-8 KW
Output Power Factor-0.8 Power Factor
Output Phase-1 Phase
Output Voltage-230 Volt
Efficiency at Full Load-> 90 %
Output Waveform type-Sine Wave
UPS Parallel Upto-Not Available
General Specifications
Flexible Battery Option-No
Isolation Transformer-Optional
Paralleling Options-Yes
Rack Mounting Kit-Not Available
Paralleling Kit for Synchronizing-Optional
Input Specification
Input Voltage-230 Volt
Other Input Voltage-220 Or 240 Volt
Input Phase-3 Phase
Input Voltage Range (Output Derated)-110 – 280 Volt
Input voltage range for main operations-165 – 183 Volt
Input frequency Range-60 – 70 Hz
Batteries & Runtime
Battery DC Bus-192 Or 240 VDC
Maximum Charger Capacity-14 Amp.
Battery Position Option-External
Battery Type Compatibility-SMF Battery
Approved Battery Capacity (AH)-17 – 100 Amp.
Communication & Management
Control panel-LCD Display
SNMP Management-Optional
Power Management Software;-In-Built
Interface Port(s)-RS-232, USB
Audible noise at 1 meter from surface of unit-< 50 Decibel
Physical
Maximum Height -576 Mm
Maximum Width -592 Mm
Maximum Depth -250 Mm
Net Weight -28 Kg
Environmental
Operating Temperature -0 – 40 °C
Operating Relative Humidity -5 – 95 % Rh
Other Specifications
Technology -Double Conversion Online
Price Includes 18% GST/ Price for UPS only/Batteries & Accessories Buy Separately
